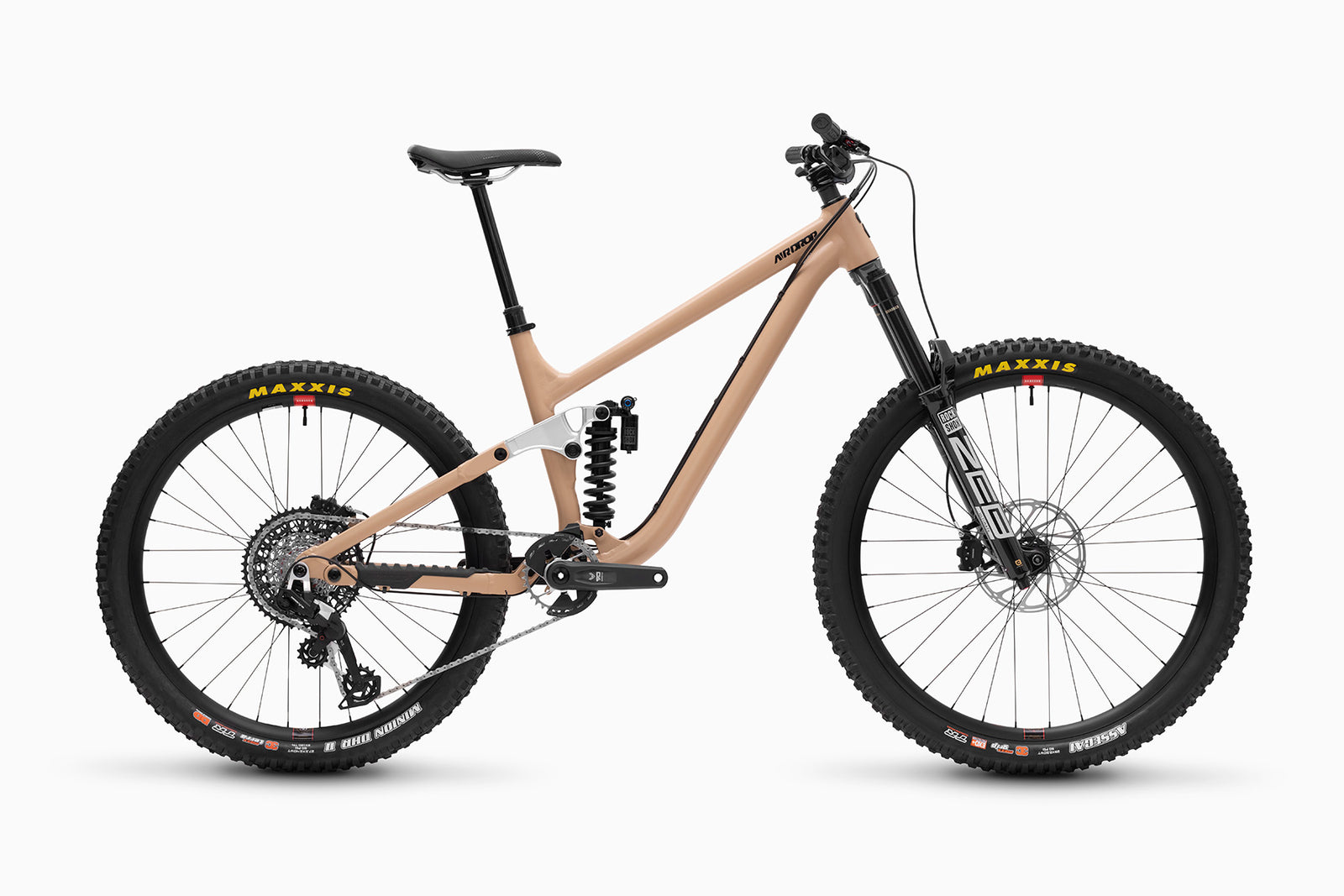

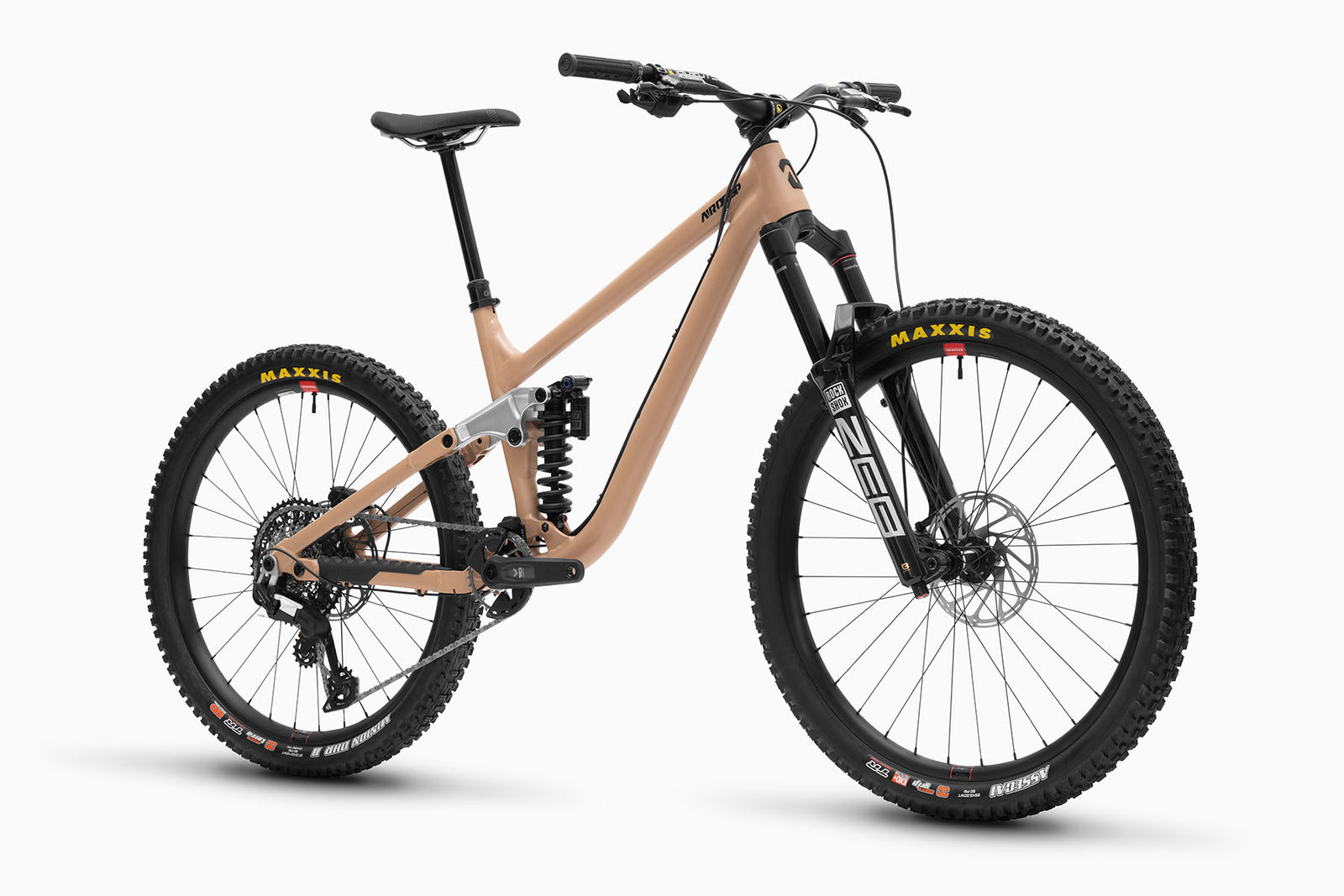

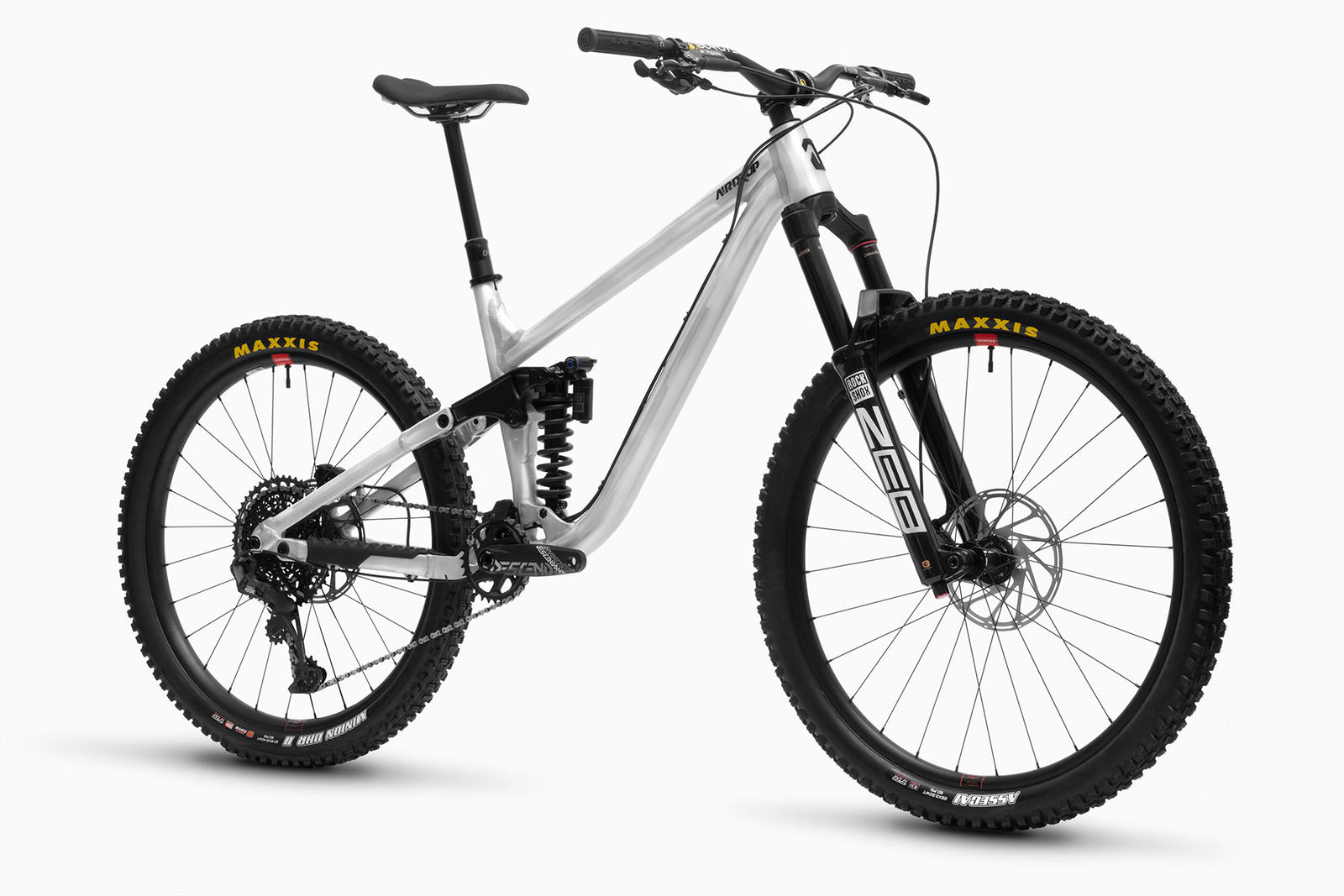

Edit MX Core

Choosing the right spring rate is key to getting the most out of a coil shock. Work out your total rider weight - including your normal riding kit - then use this chart to choose a spring. You can use the shock's preload adjuster to do the fine tuning later.

These spring rates are calculated based on the Edit's kinematics. Even if you're used to running coil shocks on other bikes, you may need to check the right spring for the Edit. These calculations are based on 30% sag. On the Edit's 205mm shock length, 30% sag measures at 187mm eye-to-eye.

We offer dropper post lengths in 10mm increments from 160-240mm. Maximising drop length for your saddle height is important to get the most out of your bike. With different seat tube and post lengths, insertion depths and drop lengths to consider, it can be tricky. So we've put together a handy guide to help you choose.

To understand your saddle height, measure your current bike from BB centre to saddle rails in mm. Then compare that measurement to the chart below to identify the best drop legth for your Edit frame size.

Things to consider

The Edit full builds come with a 165mm crank, so if the bike you're used to has longer cranks, factor that in. Saddle height is also affected by your choice of saddle, pedals and even shoes. We've built a margin into the advice in the chart so that you'll have room to go up or down if necessary.
