Airdrop Reach Adjust Headset

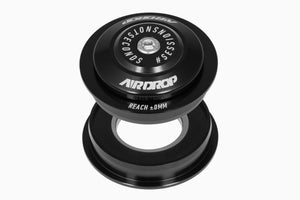

A complete, premium CNC machined reach adjust headset for your Airdrop Slacker frame.

As part of the Slacker DH frame's development, we also developed this reach adjust headset. Compatible with the Slacker frame (and any other frame with a straight ZS56/ZS56 head tube), the reach adjust headset comprises of two pairs of headset cups. Effectively a pair of centered cups and then a pair of 5mm offset cups. This means dependent on the orientation of the offset cups you can run, centred, +5mm reach or -5mm reach. Having the three positions means riders can really tune the fit and ride characteristic of their bike.

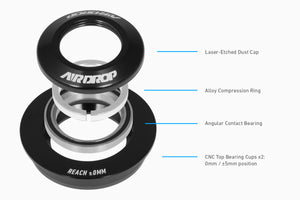

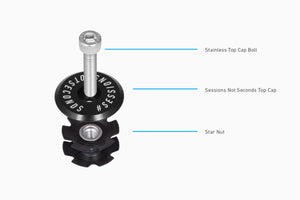

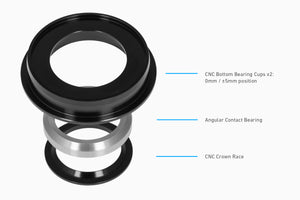

The headsets themselves are a no compromise affair. All headset cups are CNC made to ensure a perfect fit every time. We spec a dual sealed, stainless steel angular contact bearing. The upper headset cover comprises of two rubber seals, to keep out the worst of the weather and grime. All headsets also include a starnut and our very own sessions not seconds top cap with stainless bolt.

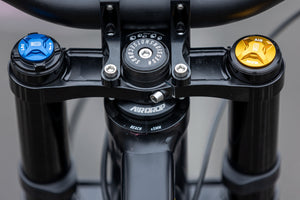

Please Note this headset is compatible with dual-crown forks that have a straight 1 1/8" steerer. Not compatible with forks that have a tapered steerer.

Key Features
Compatible With: Slacker
Fitment: ZS56 upper / ZS56 lower
Cups: 6061 T-6 aluminium
Cover: 6061 T-6 aluminium
Crown Race: Steel
What's Included: 0mm cups, ±5mm cups, bearings, crown race, top cap, bolt and star-fangled nut
Weight: 143g
Head Tube Upper: 56mm (ZS56)
Head Tube Lower: 56mm (ZS56)
Upper Cup Insertion Depth: 10mm
Lower Cup Insertion Depth: 10mm
Upper Stack Height: 10.5mm
Lower Stack Height: 4mm
Upper Bearing: 41mm
Lower Bearing: 41mm
Fork Steerer: 1 1/8" Straight
