An Edit MX ordered today will be built in the week shown below. Please be aware that these dates are estimates and can be subject to change.
Option | Build Date |
---|---|
Edit MX Frame & Vivid Coil |
w/c 14th July |
Edit MX Frame & Vivid Air |
w/c 14th July |
Edit MX Frame & EXT Arma v4 | w/c 28th July |
Edit MX Core |
w/c 8th September |
Edit MX Works |
w/c 14th July |
Edit MX Stealth Ltd Edition | w/c 14th July |

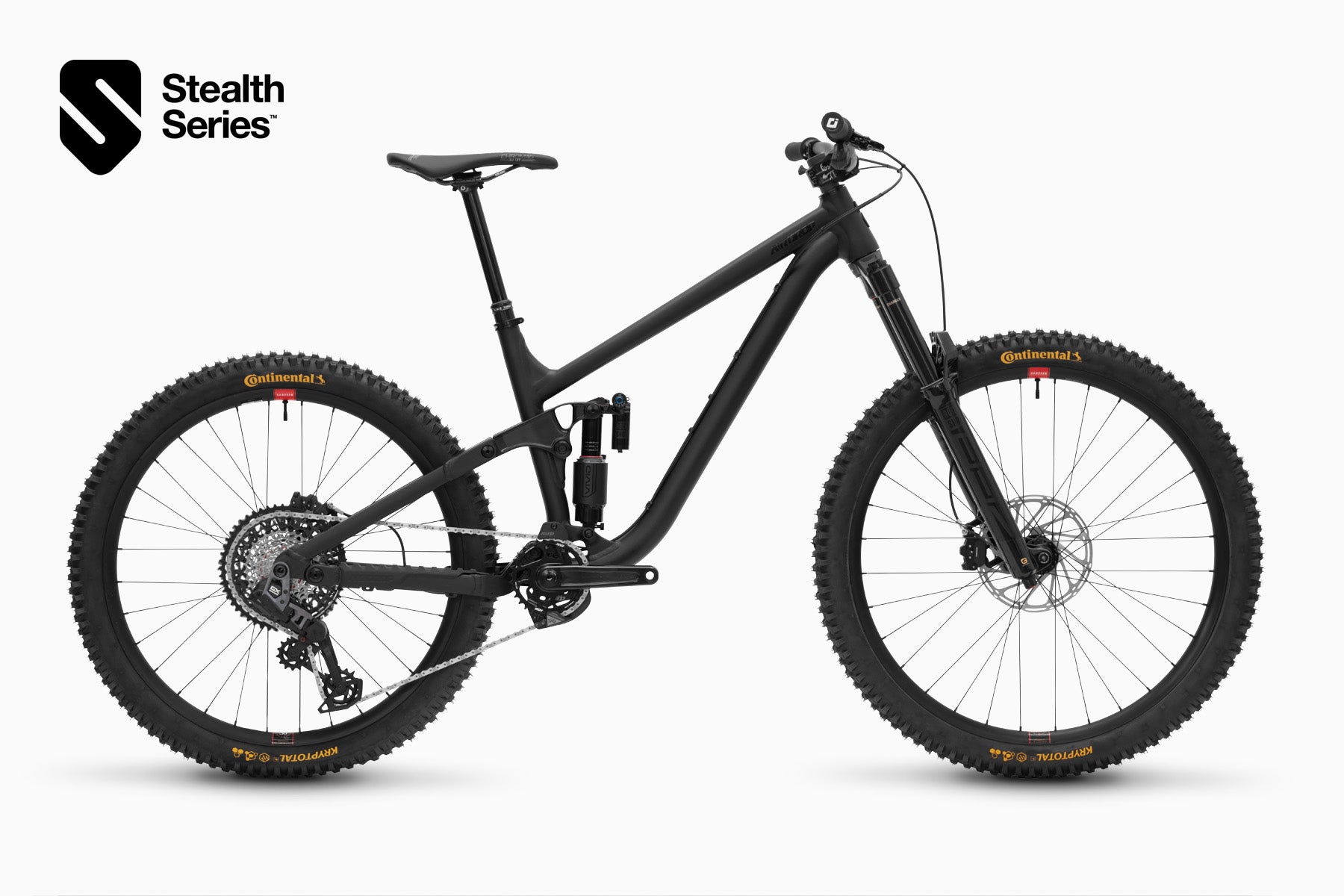

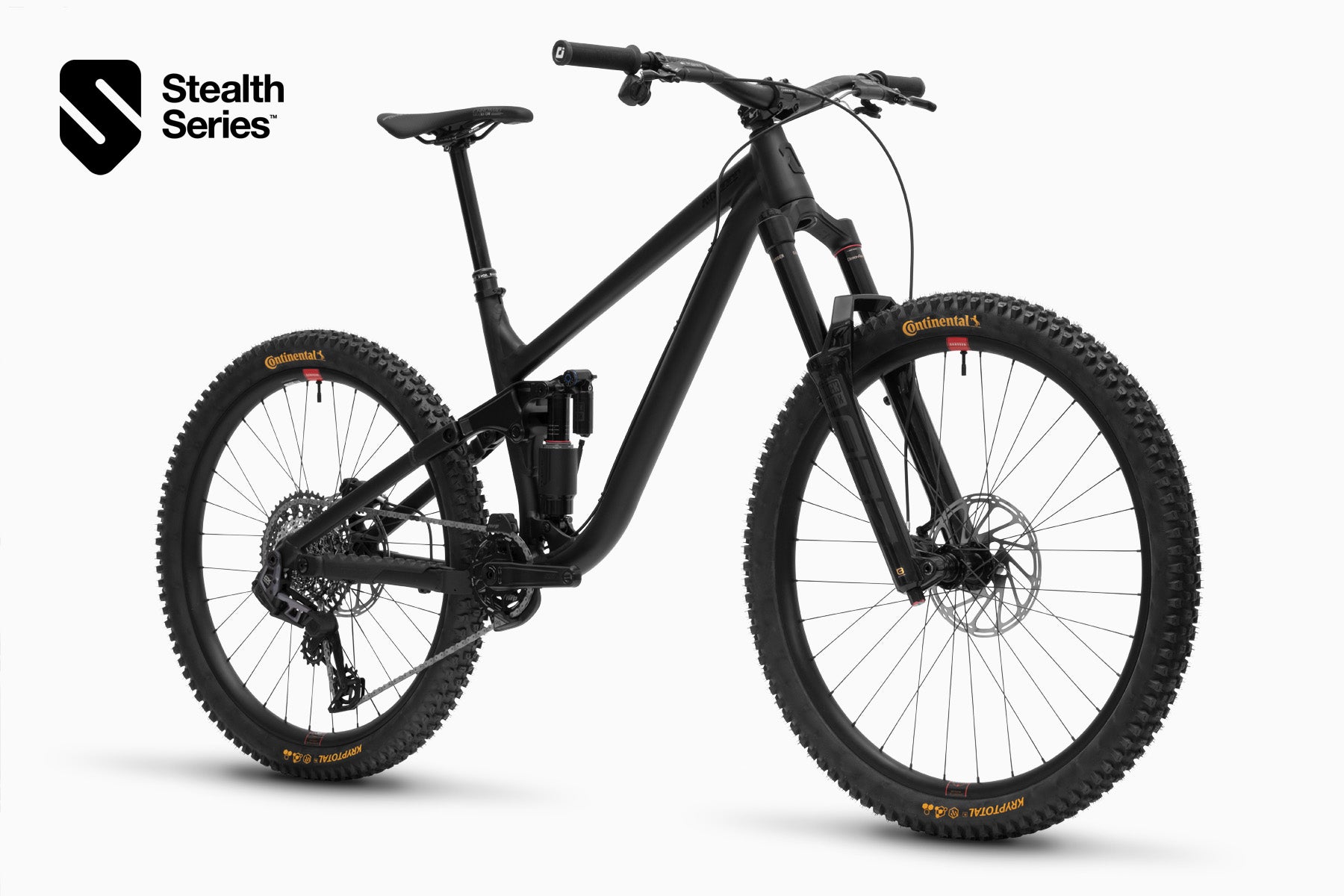

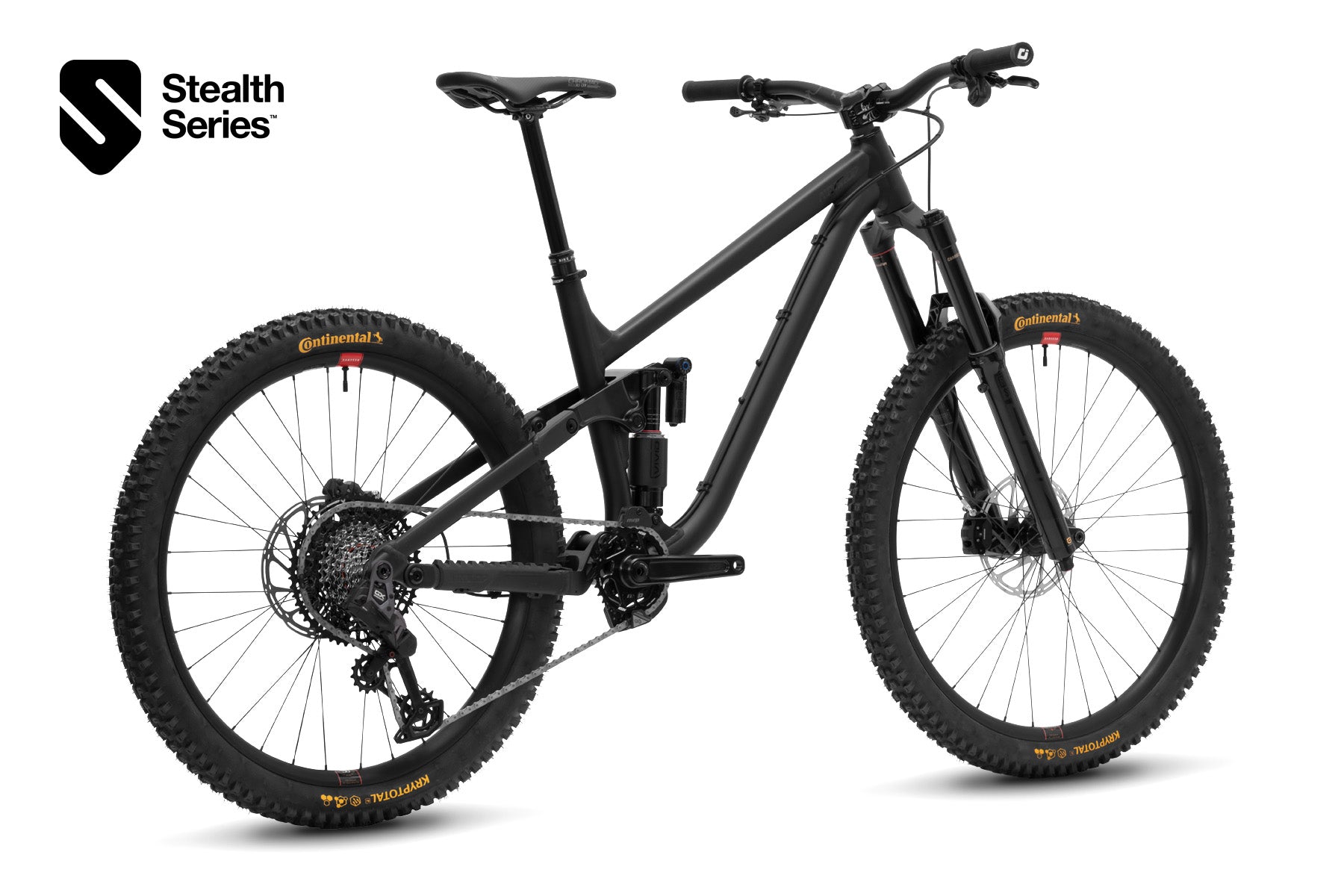

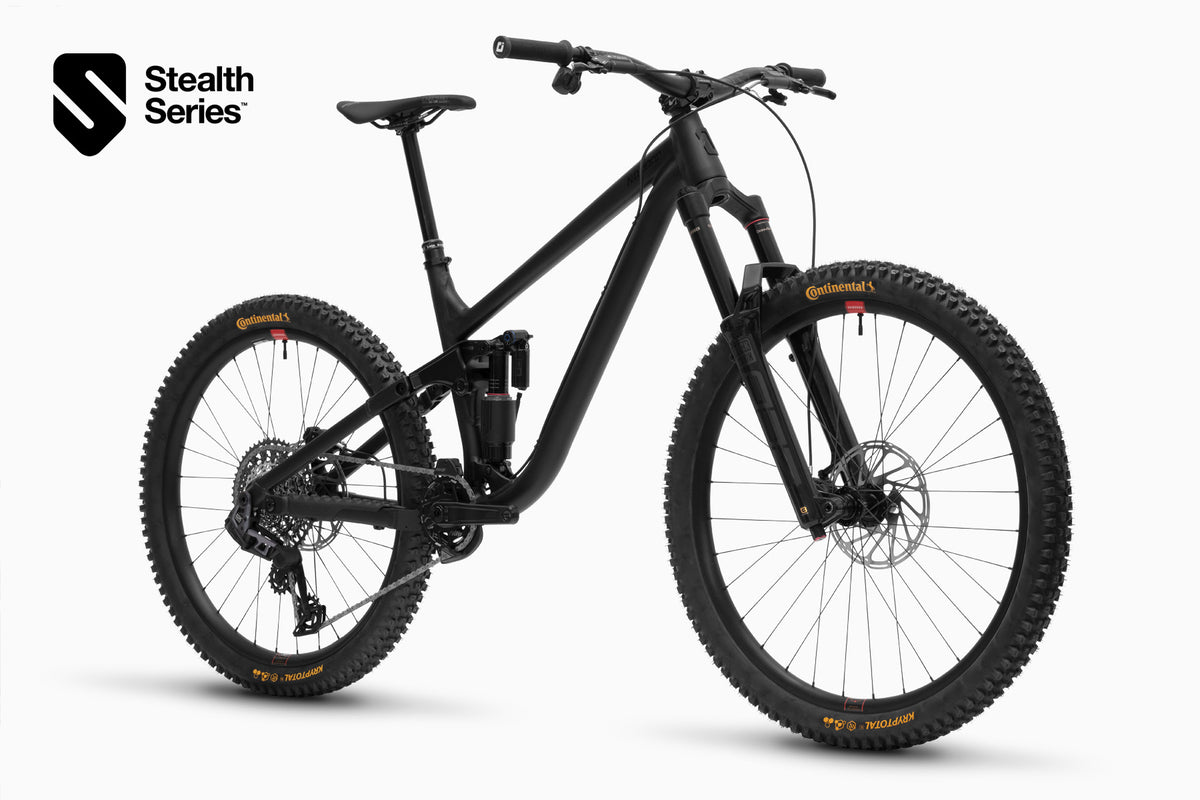

Stealth Series is a run of limited edition bikes spanning the whole Airdrop range. With a fully blacked-out colour scheme and hand-picked build kit from rider-owned brands, these bikes are on another level both in terms of aesthetics and performance.
The Edit MX Stealth is built around a limited run of frames with a matte black powder coat finish and a black anodised rocker - a combo we've never sold before (you can choose Raw or Elastoplast if you like). The head-tube badge is black brushed alloy and the decals are gloss black. We've selected the Zeb Ultimate 170mm fork in black, with custom-made black decals to keep it stealthy. They're paired with a Vivid Ultimate Air shock, also with custom black decals, and the stroke upped to 65mm to deliver 168mm travel.
This is the first limited edition Edit MX build we've offered, so it needs to be special. We've imported NSB Talon Cranks, Chainring and BB, built to order in North Shore Billet's Whistler machine shop. They're fully CNC machined, DH/Freeride rated and independently tested at EFBE Pruftechnik in Germany. They're good. Really good. The dudes at NSB all ride bikes and they know what they're doing. But perhaps more importantly, they're anodised. In black. To keep things stealthy we've selected SRAM GX AXS wireless 1x12 drivetrain. Dropper duties are taken care of by BikeYoke's new Revive 3.0 post and Triggy lever.
The wheelset is built in-house with Reserve HD30 AL rims over Hope Pro 5 hubs in black. They're wearing Continental Kryptotal Enduro rubber front and rear. Stopping power is courtesy of SRAM Maven Silver DH brakes which - in spite of their name - are of course black. To finish things off we went straight to Chromag, putting a Riza stem up front and pairing it with an OSX 38mm alloy bar, then added ODI longnecks and a Chromag Mood DT saddle.
At Airdrop we say we build the bikes we want to ride. And we really want to ride this one. Working with NSB, Reverse, Chromag and BikeYoke means everyone involved rides bikes and is in the game for the right reasons. We're incredibly proud that we're in a position to make bikes like this, and offer you the chance to own one.
Only 15 Edit MX Stealth bikes will be built. Stealth Series owners will get a numbered certificate of authenticity with the bike, signed by the builder.
Frame | Airdrop Edit (v5) MX 6061-T6 Alloy |
Fork | Rockshox Zeb Ultimate 170mm Charger 3.1 29" in Black |
Rear Shock | Rockshox Vivid Air Ultimate RC2T 205x65 |
Headset | Airdrop Tapered Headset ZS44/56 |
Spacers | Airdrop Carbon 5mm |
Rear Axle | Airdrop CNC Axle 12x148mm UDH Compatible |
Seatpost | BikeYoke Revive 3.0 with Triggy Alpha lever |
Seat Clamp | Airdrop CNC Bolt |
Rear Derailleur | SRAM GX AXS T-type 1x12 |
Shifter | SRAM GX AXS Rocker |
Cassette | SRAM GX XS-1275 10-52 |
Chain | SRAM GX T-type |
Chain Guide | MRP SXG |
Cranks | North Shore Billet Talon Crank 165mm & 32t Chainring in Black |
B-Bracket | North Shore Billet Threaded BB 73mm in Pewter |
Brakes | SRAM Maven Silver (in Black) with Stealth hose |
Rotors | SRAM HS2 200mm front & rear |
Wheels | Reserve 30HD AL rims hand-built on Hope Pro 5 hubs in black |
Tubeless | Reserve Fillmore valves & Rim Tape with WTB TCS Sealant |
Tyres | Continental Kryptotal 27.5x2.4" Enduro Front / 27.5x2.4" Rear |
Stem | Chromag Riza 38mm Reach, 35mm Clamp |
Handlebars | Chromag OSX 800mm Wide, 38mm Rise, 35mm Clamp |
Saddle | Chromag Mood DT |
Grips | ODI Longneck |
Chainstay Protector | Airdrop Silencer with alloy core |
Pedals: | Available separately |
Description
Stealth Series is a run of limited edition bikes spanning the whole Airdrop range. With a fully blacked-out colour scheme and hand-picked build kit from rider-owned brands, these bikes are on another level both in terms of aesthetics and performance.
The Edit MX Stealth is built around a limited run of frames with a matte black powder coat finish and a black anodised rocker - a combo we've never sold before (you can choose Raw or Elastoplast if you like). The head-tube badge is black brushed alloy and the decals are gloss black. We've selected the Zeb Ultimate 170mm fork in black, with custom-made black decals to keep it stealthy. They're paired with a Vivid Ultimate Air shock, also with custom black decals, and the stroke upped to 65mm to deliver 168mm travel.
This is the first limited edition Edit MX build we've offered, so it needs to be special. We've imported NSB Talon Cranks, Chainring and BB, built to order in North Shore Billet's Whistler machine shop. They're fully CNC machined, DH/Freeride rated and independently tested at EFBE Pruftechnik in Germany. They're good. Really good. The dudes at NSB all ride bikes and they know what they're doing. But perhaps more importantly, they're anodised. In black. To keep things stealthy we've selected SRAM GX AXS wireless 1x12 drivetrain. Dropper duties are taken care of by BikeYoke's new Revive 3.0 post and Triggy lever.
The wheelset is built in-house with Reserve HD30 AL rims over Hope Pro 5 hubs in black. They're wearing Continental Kryptotal Enduro rubber front and rear. Stopping power is courtesy of SRAM Maven Silver DH brakes which - in spite of their name - are of course black. To finish things off we went straight to Chromag, putting a Riza stem up front and pairing it with an OSX 38mm alloy bar, then added ODI longnecks and a Chromag Mood DT saddle.
At Airdrop we say we build the bikes we want to ride. And we really want to ride this one. Working with NSB, Reverse, Chromag and BikeYoke means everyone involved rides bikes and is in the game for the right reasons. We're incredibly proud that we're in a position to make bikes like this, and offer you the chance to own one.
Only 15 Edit MX Stealth bikes will be built. Stealth Series owners will get a numbered certificate of authenticity with the bike, signed by the builder.
Build Kit
Frame | Airdrop Edit (v5) MX 6061-T6 Alloy |
Fork | Rockshox Zeb Ultimate 170mm Charger 3.1 29" in Black |
Rear Shock | Rockshox Vivid Air Ultimate RC2T 205x65 |
Headset | Airdrop Tapered Headset ZS44/56 |
Spacers | Airdrop Carbon 5mm |
Rear Axle | Airdrop CNC Axle 12x148mm UDH Compatible |
Seatpost | BikeYoke Revive 3.0 with Triggy Alpha lever |
Seat Clamp | Airdrop CNC Bolt |
Rear Derailleur | SRAM GX AXS T-type 1x12 |
Shifter | SRAM GX AXS Rocker |
Cassette | SRAM GX XS-1275 10-52 |
Chain | SRAM GX T-type |
Chain Guide | MRP SXG |
Cranks | North Shore Billet Talon Crank 165mm & 32t Chainring in Black |
B-Bracket | North Shore Billet Threaded BB 73mm in Pewter |
Brakes | SRAM Maven Silver (in Black) with Stealth hose |
Rotors | SRAM HS2 200mm front & rear |
Wheels | Reserve 30HD AL rims hand-built on Hope Pro 5 hubs in black |
Tubeless | Reserve Fillmore valves & Rim Tape with WTB TCS Sealant |
Tyres | Continental Kryptotal 27.5x2.4" Enduro Front / 27.5x2.4" Rear |
Stem | Chromag Riza 38mm Reach, 35mm Clamp |
Handlebars | Chromag OSX 800mm Wide, 38mm Rise, 35mm Clamp |
Saddle | Chromag Mood DT |
Grips | ODI Longneck |
Chainstay Protector | Airdrop Silencer with alloy core |
Pedals: | Available separately |
Intended Use: | Enduro / All-Mountain |
Travel: | 170mm front / 168mm rear |
Wheel Size: | 29" front / 27.5" rear |
Frame: | Custom butted 6061-T6 alloy with one-piece CNC rocker |
Shock Spec: | 205x65mm Trunnion (stealth series) |
Rear End: | 148x12 SRAM UDH Compatible |
Frame Weight: | 3.75kg (S3) |
Bike Weight: | 16.20kg (S3) |
Frame Warranty: | 5 years (more info) |
Frame | Airdrop Edit (v5) MX |
Material | 6061 T-6 Alloy |
Front/Rear Travel | 170/168mm (stealth series) |
Wheel Size | 29" front / 27.5" rear |
Bottle Cage Mount | Yes |
Front Mech Mount | No |
Rear Shock Size | 205x65mm (stealth series) |
Rear Shock Mount | Trunnion upper / M8x25mm lower |
Bottom Bracket | 73mm BSA30 threaded |
Chain Guide Mount | ISCG05 |
Headset Top | 1 1/8" / 44mm inset (ZS44) |
Headset Bottom | 1 1/2" / 56mm inset (ZS56) |
Seatpost Diameter | 34.9mm |
Seatpost Insertion Depth | 245mm (S1) / 275mm (S2) / 295mm (S3) / 315mm (S4) |
Seat Clamp Diameter | 38.6mm |
Rear Axle | Boost 148x12mm UDH compatible |
Rear Brake Mount | Post |
Minimum Rotor Size | 200mm |
Maximum Rotor Size | 203mm |
Maximum Tyre Size | 27.5" x 2.6" |
Cable Routing | External with Stealth Dropper |
Chainstay Protector | Airdrop Silencer with alloy core |
S1 | 155cm - 167cm (5'2" - 5'6") | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S2 | 165cm - 178cm (5'5" - 5'10") | ||||||||||||
S3 | 175cm - 188cm (5'9" - 6'2") | ||||||||||||
S4 | 185cm - 198cm (6'1" - 6'6") |
Choosing the right spring rate is key to getting the most out of a coil shock. Work out your total rider weight - including your normal riding kit - then use this chart to choose a spring. You can use the shock's preload adjuster to do the fine tuning later.
These spring rates are calculated based on the Edit's kinematics. Even if you're used to running coil shocks on other bikes, you may need to check the right spring for the Edit. These calculations are based on 30% sag. On the Edit's 205mm shock length, 30% sag measures at 187mm eye-to-eye.
Rider Weight | Spring Rate |
---|---|
55kg - 59kg | 300lb |
60kg - 64kg | 325lb |
65kg - 69kg | 350lb |
70kg - 74kg | 375lb |
75kg - 79kg | 400lb |
80kg - 84kg | 425lb |
85kg - 89kg | 450lb |
90kg - 94kg | 475lb |
95kg - 99kg | 500lb |
100kg - 104kg | 525lb |
105kg - 109kg | 550lb |
110kg - 119kg | 600lb |
Features
Intended Use: | Enduro / All-Mountain |
Travel: | 170mm front / 168mm rear |
Wheel Size: | 29" front / 27.5" rear |
Frame: | Custom butted 6061-T6 alloy with one-piece CNC rocker |
Shock Spec: | 205x65mm Trunnion (stealth series) |
Rear End: | 148x12 SRAM UDH Compatible |
Frame Weight: | 3.75kg (S3) |
Bike Weight: | 16.20kg (S3) |
Frame Warranty: | 5 years (more info) |
Frame Spec
Frame | Airdrop Edit (v5) MX |
Material | 6061 T-6 Alloy |
Front/Rear Travel | 170/168mm (stealth series) |
Wheel Size | 29" front / 27.5" rear |
Bottle Cage Mount | Yes |
Front Mech Mount | No |
Rear Shock Size | 205x65mm (stealth series) |
Rear Shock Mount | Trunnion upper / M8x25mm lower |
Bottom Bracket | 73mm BSA30 threaded |
Chain Guide Mount | ISCG05 |
Headset Top | 1 1/8" / 44mm inset (ZS44) |
Headset Bottom | 1 1/2" / 56mm inset (ZS56) |
Seatpost Diameter | 34.9mm |
Seatpost Insertion Depth | 245mm (S1) / 275mm (S2) / 295mm (S3) / 315mm (S4) |
Seat Clamp Diameter | 38.6mm |
Rear Axle | Boost 148x12mm UDH compatible |
Rear Brake Mount | Post |
Minimum Rotor Size | 200mm |
Maximum Rotor Size | 203mm |
Maximum Tyre Size | 27.5" x 2.6" |
Cable Routing | External with Stealth Dropper |
Chainstay Protector | Airdrop Silencer with alloy core |
Sizing
S1 | 155cm - 167cm (5'2" - 5'6") | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S2 | 165cm - 178cm (5'5" - 5'10") | ||||||||||||
S3 | 175cm - 188cm (5'9" - 6'2") | ||||||||||||
S4 | 185cm - 198cm (6'1" - 6'6") |
Spring Rate
Choosing the right spring rate is key to getting the most out of a coil shock. Work out your total rider weight - including your normal riding kit - then use this chart to choose a spring. You can use the shock's preload adjuster to do the fine tuning later.
These spring rates are calculated based on the Edit's kinematics. Even if you're used to running coil shocks on other bikes, you may need to check the right spring for the Edit. These calculations are based on 30% sag. On the Edit's 205mm shock length, 30% sag measures at 187mm eye-to-eye.
Rider Weight | Spring Rate |
---|---|
55kg - 59kg | 300lb |
60kg - 64kg | 325lb |
65kg - 69kg | 350lb |
70kg - 74kg | 375lb |
75kg - 79kg | 400lb |
80kg - 84kg | 425lb |
85kg - 89kg | 450lb |
90kg - 94kg | 475lb |
95kg - 99kg | 500lb |
100kg - 104kg | 525lb |
105kg - 109kg | 550lb |
110kg - 119kg | 600lb |
